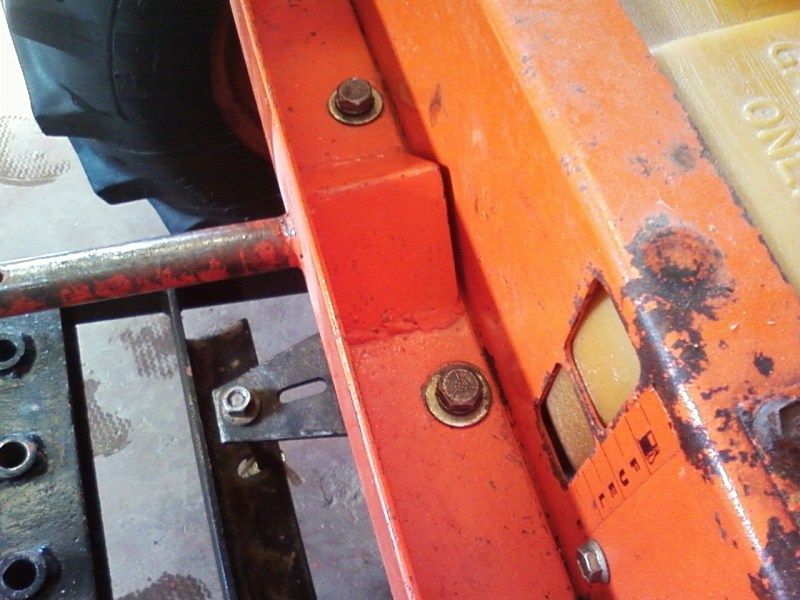

I've had several people ask about my rear weight bracket so I thought I'd post some pics of how it was made to help you if you want to build something similar or if your just curious about it.

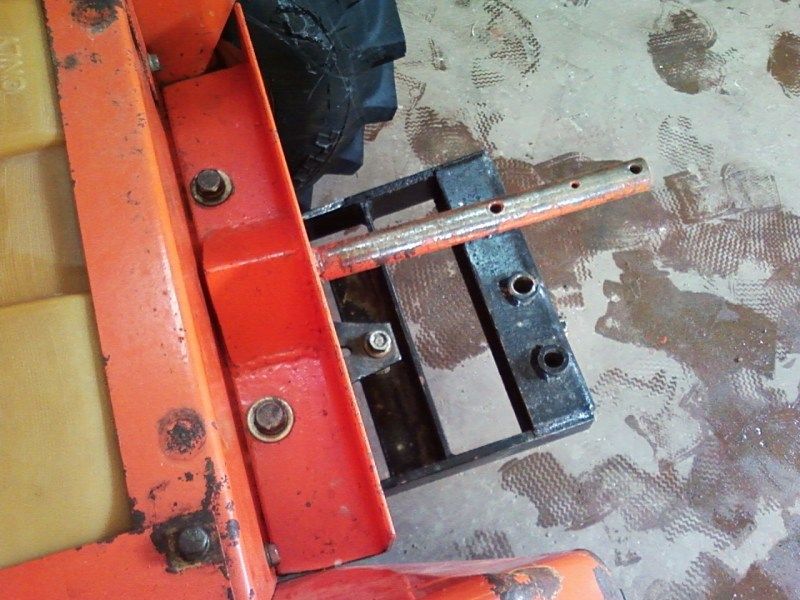

I used a piece of heavy angle iron and a section off an old weight lifting barbell. I also used slightly longer mounting bolts.







·
Registered
Joined
·
2,546 Posts
Re: Rear Weight Bracket I built. Works for 200 or 400 series

That's a handy design but I would add a support to fasten to the transaxle in order to reduce the stress on the two bolts going through the frame and into the transaxle. When the rod is filled with weights you could bend the bolts or, worse, crack the transaxle case.


·
Registered
Joined
·
2,831 Posts
Discussion Starter · #6 ·
Re: Rear Weight Bracket I built. Works for 200 or 400 series

Bart said:
That's a handy design but I would add a support to fasten to the transaxle in order to reduce the stress on the two bolts going through the frame and into the transaxle. When the rod is filled with weights you could bend the bolts or, worse, crack the transaxle case.
Good idea, but a person can "over design" it to. I've had several hundred pounds on it and with grade 5 or better bolts it don't budge even with me jumping on it.


·
Registered
Joined
·
2,831 Posts
Discussion Starter · #8 ·
Re: Rear Weight Bracket I built. Works for 200 or 400 series

Hydriv said:
If you make up a measured drawing and a parts list for it. We could put it into the new "PLANS" section. :thumbsup:
I would be honored Tom. I will do that and let you know when it's done.
